Generator Enclosure Cooling Fan

The generator enclosure cooling fan would help your generator stay active without causing fire problems or other engine problems.

Generator enclosure cooling fan
Generator enclosure

Generator enclosure cooling fan

Before you think of building a generator enclosure, consider the airflow. Airflow should stay in the upward direction around the engine or mounted radiators.

The ventilation system must sufficiently move air to control the temperature in all areas of the engine room.

Before you use an enclosure, understand that up to 10 percent of the fuel consumed by the average internal combustion engine is dissipated to the surrounding area as heat.

You must find a vent to eliminate this heat. When the heat is eliminated, your generator works safely and properly.

The most efficient method of removing this heat is using a generator enclosure cooling fan. The fan pulls air past switchgear, then over the engine, from back to front.

How much ventilation does a generator box need?

You need adequate ventilation for your generator enclosure. This ventilation would offer optimal safety and operation of the generator.

According to OSHA, your generator should have at least 3 to 4 feet of clear space on all sides and above. The spacing would offer the generator adequate ventilation.

How much airflow does a generator need?

You should be able to differentiate between the outside air large amount required for cooling your generator.

It should be approximately 65 CFM per kw, for example, 6500 CFM for a typical 100 kw generator.

A smaller amount of outside combustion air is required for the generator itself.


You should ensure that your generator get adequate ventilation. Ventilation would help your gen stay safe from hazards.

Some of the hazards include risk of fire, toxic fumes, and overheating. You should give special consideration in building the proper ventilation features into any enclosure.

Some of the features include:

  • Floorboards in wooden structures  that must be spaced at least 1/2 inch apart
  • Fresh-air louvers that should be built into joints, walls, or doors. Automatic louvers allow for ventilation and keep rodents,  rain and wind, birds, and insects
  • An exhaust fan
  • Enough space

You need adequate ventilation for your generator enclosure. The enclosure should be vented with cutouts for air intake.

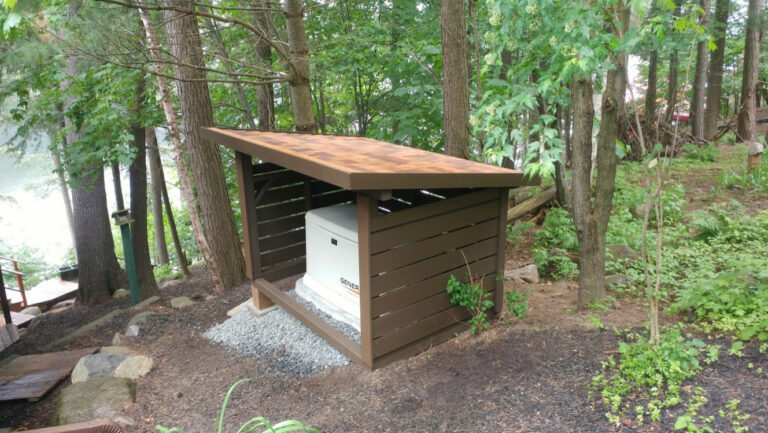

Generator enclosure
Generator enclosure

It allows fumes and exhaust heat to dissipate fumes. For proper airflow, the cooling fan and temperature-monitoring system stop damages.

In addition, they prevent overheating and risk of fire, or damage to the generator.

Generators give off toxic carbon monoxide (CO) gas, which dangerous gas. People can die from CO poisoning in poor ventilated areas.

This danger is acute for walk-in enclosures, where people spend more time in enclosures.

Enclosuresenveloped with CO gas can choke the generator engine and cause it to cut off.

You can avoid this with a battery-operated CO detector. The detector would help your generator stay ventilated in its enclosure.

Generator enclosure fence


Here are some of the enclosure fences you need:

Weather-Protective Enclosure Fences

We have numerous fence options for your generator protection. You can consider the metal enclosures, but they lack some key benefits for any weather-protected enclosure.

A traditional metal enclosure can offer support against wind and rain. However, it does not protect the generator from varying temperatures.

This enclosure provide ventilation and some airflow, but not enough to handle diesel generators.

Aluminum or steel work in some situations. This type of enclosure fence should always be weatherproof in their design.


Sound-Attenuating Enclosure Fence

The soundproofing enclosure fence is always necessary. This type of enclosure is needed in places where outdoor generator use is limited.

The enclosures come a bit larger and are more expensive to build. However, they offer reduced acoustics overall.

The enclosure reduce the noise significantly. To accomplish this, it tends to be longer and taller in overall size.

This ensures that you get added insulation within the walls of the housing. This building often feature a muffler on the inside of the enclosure.

Walk-In Enclosure Fences

The best thing you can do for your generator is to follow the directions or recommendation of its manufacturers.

The fence offers complete protection for your generator. Walk-in enclosures are often designed to provide weatherproof, soundproof, and fireproof.

They are fully insulated to be quiet. The walk-in enclosure fence is custom built to make your specifications.

Other Enclosure Fence Design

Before you plan for your enclosure fence, you should consider a number of things.

Some of the things to consider include protection level and federal, state, or local regulations. You should consider the following aspects of enclosure design.

How do you vent a generator box?


You should ensure that your enclosure has a proper ventilation. You can keep things running smoothly and prevent dangerous accidents when the enclosure is ventilated.

. Ventilation controls the following

  • The temperature of the Generator Room: Ventilation helps in regulating the temperatures of the generator room.

Engines and other electronic equipment can get quite hot while in use. However, with ventilation fans, you can keep the room at a safe temperature

The fans can prevent the generator from overheating. The fan sizing depends on various factors including the size of generators

  • Ventilation Airflow & Air Movement: You should ensure that there is air moving through vents with the use of fans.

You can also achieve this through exhaust vents or air curtains. The process controls temperature and ensures a steady flow of fresh air.

Engines need ventilation to create combustion in the cylinders. It also allow proper airflow for the success of generators.

Ensure that the airflow is in an upward flow of air around engines or flow from the back of the engine to the front for optimum efficiency.

Generator rooms requires need of air purging as buildup of engine exhaust and other output.Air ventilation systems ensure that you have noise reduction.

When you install insulated air ducts and using smart layout to where air inlet and outlet locations are, noise levels can be controlled.

Ensure that your generator room is properly ventilated. This helps the generators and other equipment to avoid overheating.

Overheating could cause a serious malfunction. However, ventilation keeps temperatures and levels of exhaust and other fumes at a minimum.

Can you enclose a generator?

Loud generators might violate local noise ordinances. An enclosure muffles the noise and helps keep your neighborhood content.

It is really easy to build your own DIY baffle box or generator sound box. You want to enclose the generator with a DIY sound box to lessen noise. The trick is making sure that your generator does not overheat and at the same time you have easy access to the power cord while in use.
